Technical Data/Details

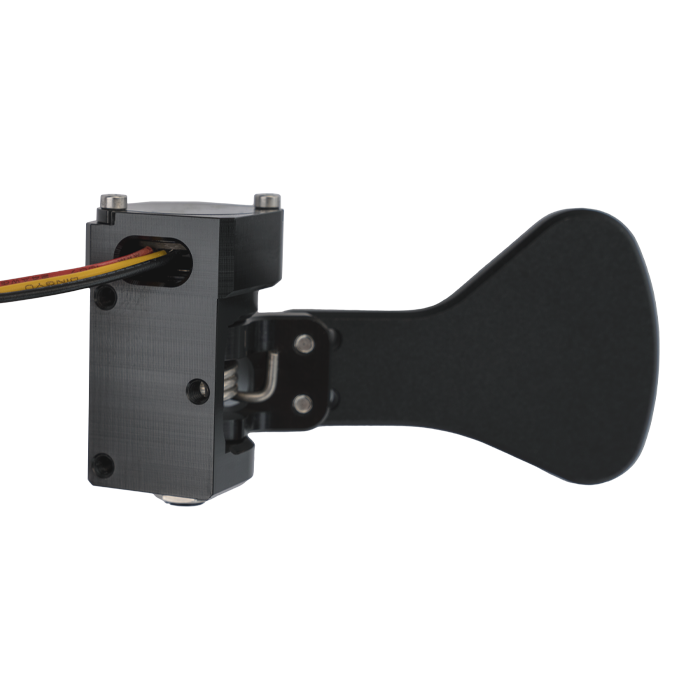

pair of paddle shifters for simulator and motorsport applications
cnc machined out of high strength automotive aluminium
magnetic snap action – actuation force adjustable in a wide range
durability – microswitch nominal lifetime = 1 million operations
shifter tested for 2 million operations without mechanical or electrical failure, test rig still running…
IP67 sealed switch, potted wire leads
small dimensions for ergonomic wheel integration (small rims vs. large quick release)
lightweight design – shifter weight = 46 g each (largest magnets, w/o paddle)
!Not suitable for wheels of the McLaren Esports series!
Paddle-Options
None
Formula
GT
Paddle shifter comes without paddles
width = 26 mm
height = 67 mm
weight = 13 g each
width= 34 mm
height = 122 mm
weight = 30 g each
Further Informationen
Mounting
Standard
Fanatec Adapter
mount to flat surface
0.1” DuPont connector
compatible with Formula rim & Universal Hub
matching JST connector
very quick and easy shifter upgrade
weight = 9 g (each)
Adjust Snap Action Force
paddle shifters include
4x 5 mm magnets
4x 3 mm magnets
4x 1 mm spacers
actuation force depending on magnet and spacer combination (measuread at the tip of the Formula paddle)
800 g = 5 mm + 5 mm (factory default setting)
570 g = 5 mm + 5 mm + 1 spacer
480 g = 3 mm + 3 mm
440 g = 5 mm + 5 mm + 2 spacers
340 g = 3 mm + 3 mm + 1 spacer
260 g = 3 mm + 3 mm + 2 spacers
use supplied magnets to pull out shifter magnets
be careful, magnets are brittle
